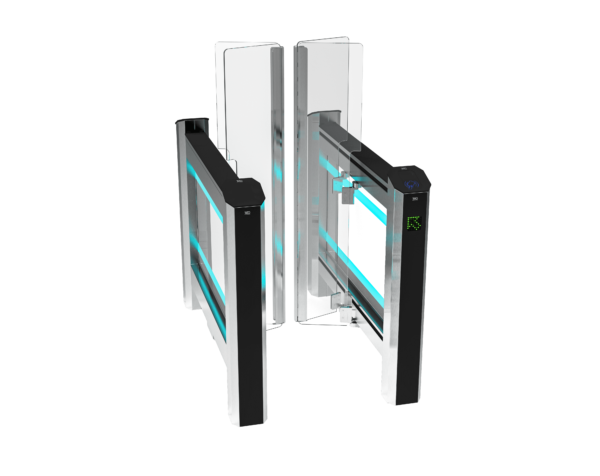

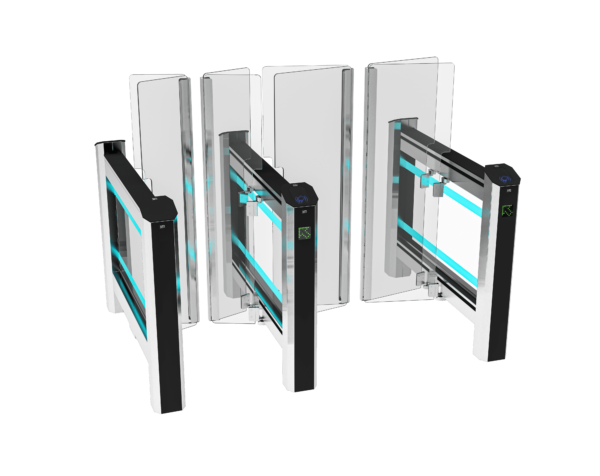

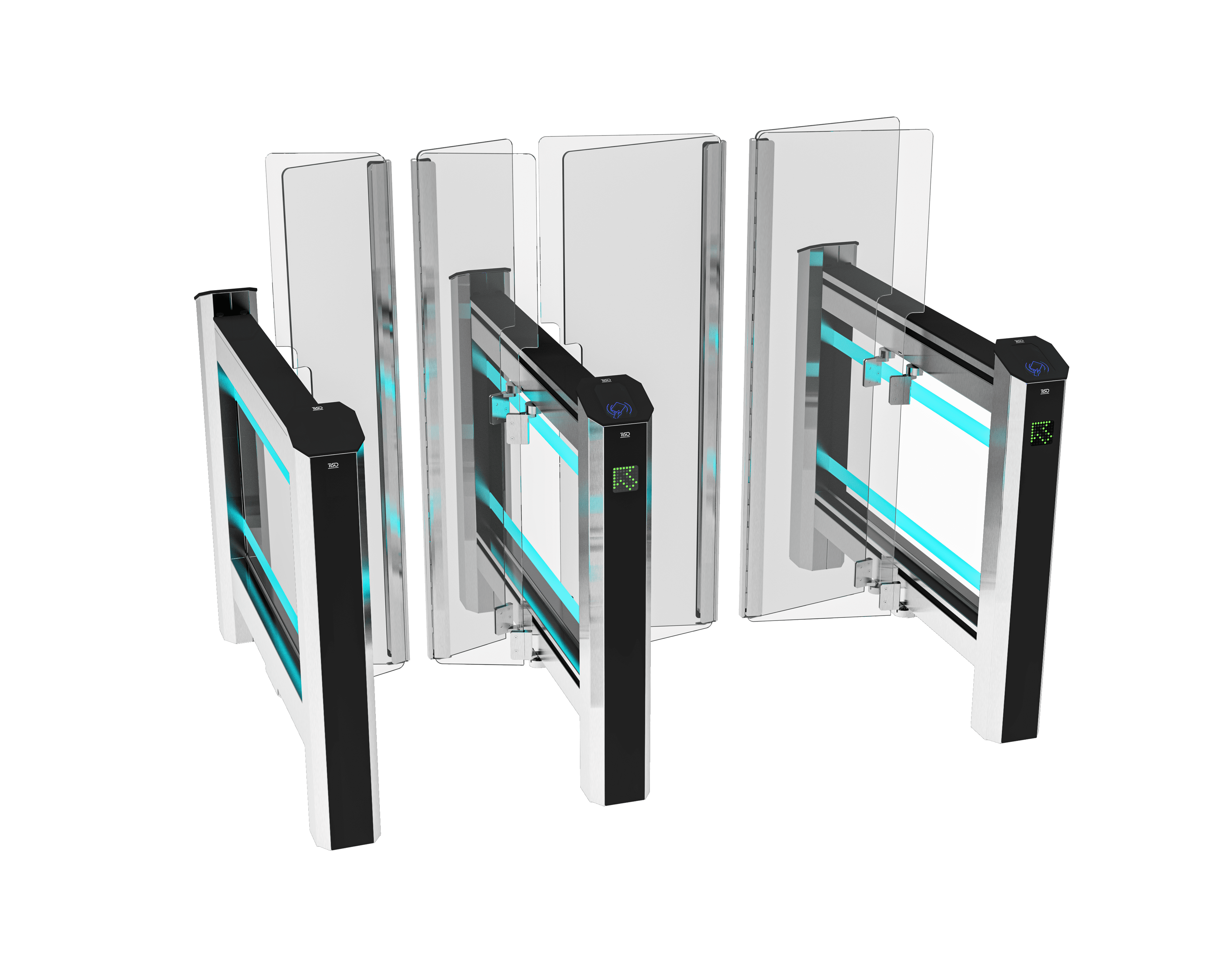

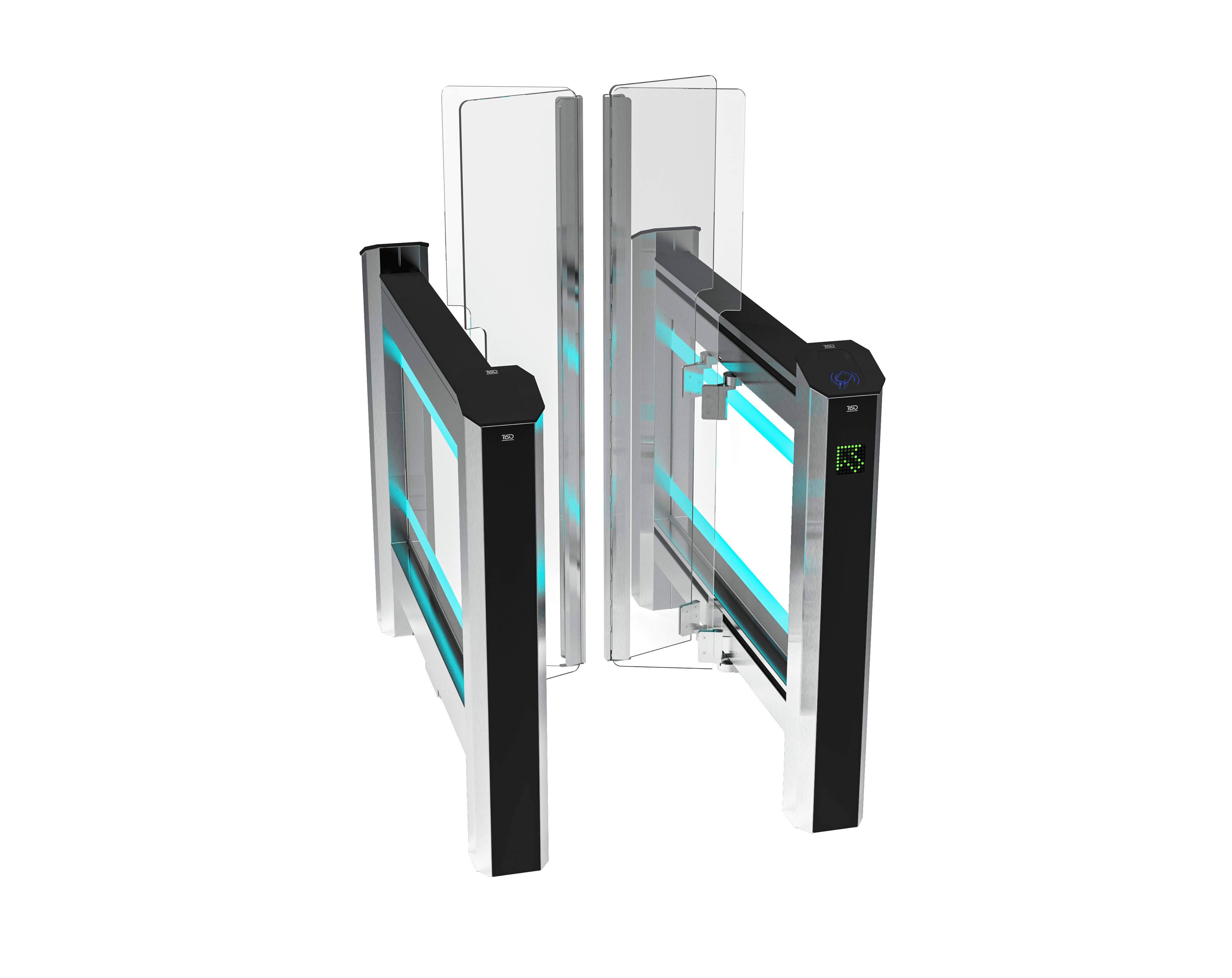

Slide speed gate with folding high gates is stylish original solution for your location that guarantees effective protection of the site. Slide speed gate could be easily fitted to any location: office centers, banks, hotels etc. The folding system of Slide gates has a more robust, reliable design compared to existing speed gates on market. The height of the flaps excludes the possibility of unauthorized passage, and also prevents the transfer of any objects.

Key features :

  •  BMDrive® – Reliable mechanism with powerful BLDC gear motor ensures long term maintenance free operation;
  • The safety function of locking system FoldEmLock® prevents the glass leaf breaking in case of vandalism;
  • The smart self-diagnosing system of mechanism BMDrive® automatically analyzes the system, detects critical malfunctions, and records error log and warnings;
  • The BMDrive® mechanism controller is equipped with an OLED display for easy setup and configuration without special programmers, also a full configuration and diagnostics is possible via a USB connector by using a service software for Windows OS;
  • Digital control of force and leaf speed in combination with safety sensors prevent a passing person from being struck by a leaf, even in case of an unauthorized passage;
  • By use of artificial intelligence algorithms and large number of high-precision infrared passage sensors, Slide speed gate detects and sounds the alarm when two people try to pass by one card, pass in the wrong direction and pass without authorization.
UGS : SLIDE Catégories : , ,

Slide 550 Slide 900
Unit dimensions (HxLxW), mm                                 1500x1432x856/1206
Passage width, mm 550 900
Opening/closing time, sec 0.7 1
Blocking system                                                 FoldEmLock®
Mechanism                                                  1500
Mechanism                                   Brushed SS AISI 304
Available housing  Brushed SS AISI 316

Polished SS AISI 304

Polished SS AISI 316

Powder coated RAL

Voltage

                                           from the AC (100–240) V, 50/60 Hz

                                                from a DC source 12 V

Indication

DotLights®, RFIDLights®, EdgeLights®, FloorLights®

Emergency mode

Free entry/exit (gates are opened automatically)



Fiche Technique
